Reo Posts

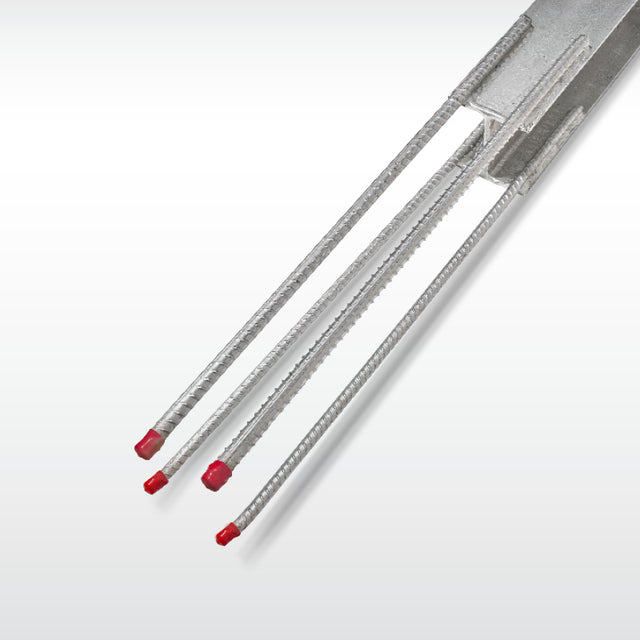

Reo posts are galvanised steel posts with reinforcing bar welded to the base. The reo bar ties the post into the footing, so the steel and the concrete act as one structure. They are used on taller retaining walls and commercial construction, where an engineer has specified them.

2 products

Material not listed?

Tell us what the job needs.

Send a drawing or product schedule with sizes and quantities so the team can review your list.

Request a quote

Prices include GST. Freight calculated separately.

Not sure which Reo Posts you need?

Text us your wall height and length, or a photo of your site, and we'll point you to the right product.

Replies 7am to 6pm

Text 0420 120 105 Call 1300 211 390

Fabricated with reo bar

Steel reinforcement is welded to the post before galvanising.

For taller walls

Used where the design calls for more strength in the footing.

To specifications

The engineer's drawings determine the post size, bar and length.

Supply to site

Delivered with your sleepers. Ask us about stock and lead time.

Choose the right product

When a wall needs reo posts.

Concrete is strong when squeezed and weak when pulled. Steel reinforcement gives a footing its tensile strength and helps stop cracking. A reo post brings that reinforcement with it: the bar is already attached, so there is no separate cage to build before the concrete pour.

Retaining wall calculator
Your wallPostNote
Low garden wallStandard H and C postsReo posts are not commonly required
Taller or loaded wallReo posts, if specifiedThe engineer sets the grade and size of bar
Commercial projectTo the drawingsBuilders and contractors should send us the schedule

Reo posts are an engineered item. Order them only to a design, and check compliance with your engineer before installation. In Queensland, walls over 1m high generally need an engineer's design and council approval.

Complete the job

Everything else the job needs, in the same order.

H Posts (Joiners)Sit between sleepers along a straight run and hold a sleeper on each side.Shop H Posts (Joiners) → C Posts (Ends)Finish the wall at each end, or at a step in height.Shop C Posts (Ends) → Concrete SleepersPlain and patterned sleepers in 75–80mm and 100mm thicknesses.Shop Concrete Sleepers → Retaining Wall DrainageAg pipe, geofabric and drainage materials for behind the wall.Shop Retaining Wall Drainage →

Order planning

Delivery, lead times and logistics

Delivery

Steel posts are long, heavy loads delivered by truck. Tell us about narrow access, steep driveways or overhead obstructions. Unloading equipment is not automatically included.

Lead time

Reo posts are usually always available quickly. Lead time is confirmed on your quote. We confirm the date with you before you pay.

Freight is priced to your delivery suburb for most metro areas, or will be confirmed with you before payment.

Delivery and pick up options are shown on each product. Wait for our confirmation before arranging transport or attending for pick up.

Questions

Before you order.

Request a quote
What is a reo post?

A reo post is a steel retaining wall post with reinforcing bar welded to the part that sits in the footing. Reo is short for reinforcement. The bar helps reinforce concrete around the post and adds to the structural integrity of the footing.

Do I need reo posts or standard posts?

That is a matter for your engineer. Standard posts are ideal for most low walls. Reo posts are for taller walls, and for footings that support a larger load. The drawings will state the standard the steel must meet.

Do you sell reo bar, mesh or bar chairs?

No. We do not stock loose reinforcement products such as rebar, reinforcement mesh, trench mesh, bar chairs or tie wire. Those reinforcement bars and accessories come from a steel reinforcement supplier. We supply the posts with the bar already manufactured on.

Can reo posts be cut or bent on site?

No. They are fabricated to length and galvanised after welding. A post that is cut or bent on site loses its coating at that point. Confirm the quantity and each length before you order.

How do I order reo posts for a building project?

Send us a message with the post schedule from your drawings. We check stock with the supplier and confirm price and timing, so you can be confident of the quality and the date before you pay.

Are reo posts galvanised?

Yes. The post and the welded bar are hot dip galvanised together after fabrication, which protects the steel that sits above the footing.
