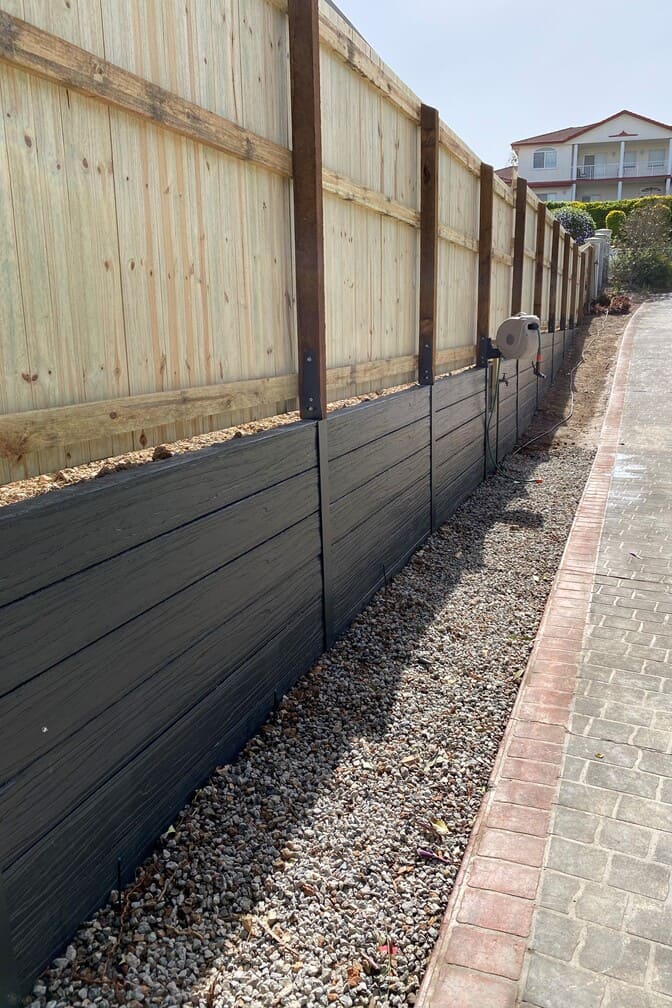

Retaining Wall Drainage: Designing Drainage That Actually Works

Most retaining wall failures in Australia don't happen because of bad materials or poor construction. They happen because water builds up behind the wall and has nowhere to go. If you're building a new wall or trying to figure out why an existing one is cracking, this guide walks through everything you need to know about retaining wall drainage, from choosing the right materials to recognising the warning signs that your system fails.

Key Takeaways

Trapped water and hydrostatic pressure are the leading causes of retaining wall failure across Australia. When soil behind the wall becomes saturated, especially in heavy clay, the water pushes outward against the wall face with force that increases with depth. During the La Niña wet seasons of 2021–2023, suburbs across Melbourne, Brisbane, and Sydney saw a spike in walls cracking, bulging, and collapsing because drainage simply couldn't cope.

Correct drainage behind a retaining wall combines four essentials: a free-draining drainage aggregate zone, a perforated drainage pipe (French drain or ag pipe) at the base, geotextile filter fabric to keep fine soil particles out, and a legal discharge point to stormwater. Skip any one of these and you're setting up for trouble.

On simple residential walls under about 1 m in wall height, a competent DIYer can install drainage channels by following council rules. But for taller walls, walls near boundaries, or those supporting driveways and buildings, professional installation and design by a structural engineer or geotechnical surveyor is essential.

Surface drainage and gutters must direct roof and yard runoff away from the wall. Even a well built wall with excellent subsurface drainage can be overwhelmed if surface runoff pours straight into the backfill. Regular maintenance, clearing drainage outlets, checking weep holes, watching for pooling water, stops minor drainage problems becoming major structural repairs and costly future repairs.

Why Retaining Wall Drainage Matters More Than You Think

A retaining wall rarely fails because the blocks were defective or the concrete was weak. Most retaining wall failures trace back to one root cause: poor drainage. During the La Niña-affected wet seasons of 2021–2023, engineers across eastern Australia surveyed numerous collapsed and deformed walls and found that water pressure buildup is the most common cause of wall leaning and structural damage.

When soil becomes saturated after storms, water trapped behind the wall adds enormous weight and hydrostatic pressure. That pressure pushes the wall forward and softens the footing beneath it. Water can cause bulging, cracking, or catastrophic failure of retaining walls, and the damage often extends beyond the wall structure itself, affecting nearby house slabs, garages, driveways, and fencing. Saturated soil adds significantly to the weight against a retaining wall, sometimes nearly doubling the lateral load compared to dry soil conditions.

Proper drainage is the single most important factor in the longevity of a retaining wall. A well-designed drainage system prevents water from pooling behind walls and protects the entire structure for decades. For walls exceeding about 1 m in height, near boundaries, or supporting buildings and driveways, always involve a structural engineer or surveyor for bespoke drainage design before you start building.

Understanding Hydrostatic Pressure and Soil Types

Hydrostatic pressure builds up behind the wall due to trapped water. It's the force that water exerts directly on the wall face, and it increases roughly in proportion to depth. Hydrostatic pressure increases by approximately 9.8 kN/m² per meter of water. That means a 2 m wall with fully saturated soil behind it faces serious building pressure that many walls simply aren't designed to handle. Water pressure builds up silently behind walls after heavy rains, often with no visible sign until damage appears.

Clay soils make everything worse. They drain slowly, hold moisture for days, and swell when saturated. In areas classified as H2 or Class E under AS 2870, soil movement of 40–75 mm across wet-dry cycles is common. Heavy clay creates higher and more persistent hydrostatic pressure than sandy or gravelly native soil. Clay soils can significantly increase hydrostatic pressure when saturated, sustaining dangerous loads against your wall for days after a storm event.

In contrast, free draining sandy or granular soils allow water to move quickly into the drainage aggregate zone and French drain instead of sitting against the wall. Saturated soil can exert immense hydrostatic pressure against retaining walls, so understanding what you're working with is critical.

A common mistake that leads to drainage failure: using site-excavated clay spoil as backfill directly behind the wall. It traps water instead of letting it escape. Knowing your soil type is the first step. A simple hand "ribbon" test (squeeze a handful of moist soil and try to roll it into a thin ribbon) gives a rough indication, but on complex sites, engineers or geotechs provide the most reliable classification for your specific project.

Anatomy of a Good Retaining Wall Drainage System

A well-designed drainage system is layered. Each component has a separate job, and they must work together for effective drainage. Think of it as a direct path for water: from the retained soil, through a filter, into aggregate, down into a pipe, and out to a safe discharge point.

The key components are:

• Wall footing and base materials that provide a firm, level foundation.
• Drainage aggregate behind the wall, typically 10–20 mm clean crushed stone forming the drainage zone.
• A 100 mm perforated pipe at the base, acting as the French drain or ag pipe.
• Geotextile filter fabric wrapping the aggregate to prevent fine soil particles from eventually clogging the system.
• Weep holes for solid masonry or concrete wall types, providing backup relief outlets.
• Surface grading above the wall to keep surface runoff away.

Base materials provide strength and level support. The drainage aggregate creates a zone where water can flow freely downward to the pipe. The pipe and outlets move water laterally away from the wall to a legal stormwater connection. Every retaining wall typically requires a drainage zone behind it.

For residential walls, the drainage aggregate zone should be at least 300 mm wide, extending the full height of the finished wall. A drainage zone typically runs a few hundred millimetres out from the wall face. For taller walls or structures carrying surcharge loads, an engineer will specify wider and deeper zones. Drawings from engineers, manufacturers, or council guidelines should always override generic rules.

Choosing Base Materials and Drainage Aggregates

It's important to distinguish between base materials under the wall (for stability) and drainage aggregate behind the wall (for water movement). They serve completely different roles, and using the right materials in each location matters.

Suitable base materials include compacted crusher dust or crushed rock (such as DGB20 road base), laid 100–200 mm deep in thin layers and properly compacted to create a firm, level footing. These materials are excellent under the wall because they compact densely and resist movement. However, crusher dust and road bases are poor as drainage materials precisely because they don't remain free draining when saturated. They pack tight and block water flow.

For the gravel zone behind the wall, use 10–20 mm clean, angular crushed stone or blue metal. This clean aggregate allows water to pass through without trapping fine soil. Use 10-20mm blue metal aggregate for drainage backfill. The drainage aggregate zone should be at least 300 mm wide behind the wall and must remain uniform, free from fines, and not contaminated with topsoil or clay during backfilling. Any mixing with excavated fill defeats the purpose. Think of this as the free draining material that gives water a clear escape route.

Filter Fabric, French Drains, and Drainage Pipes

Pipes and fabrics are what turn loose rock into a controlled drainage system that stays clear over decades. Without them, soil washing into the aggregate will gradually clog everything.

Geotextile filter fabric is laid between the native soil and drainage aggregate. It stops fine soil entering and eventually clogging the aggregate and pipe while still letting water pass freely. Geotextile fabric prevents soil from clogging drainage aggregate. Joints should overlap by at least 300 mm to avoid gaps where fines can migrate through.

A French drain in the retaining wall context is a 100 mm perforated PVC pipe laid at the base of the wall, surrounded in drainage aggregate, often placed inside a filter sock. Use 100mm perforated PVC pipe for drainage at the base. Perforated drainage pipes should have a minimum 1:100 gradient (a 1% fall) toward an outlet, with no low "bellies" where water and silt can pool. Joints must be correctly connected so roots and soil cannot easily enter.

On engineered walls, pipe size, location, and outlet type must follow the engineer's drawings. Reconnecting the ag pipe to the site stormwater system usually needs council-compliant details, and the discharge point must be legal and approved.

Designing Drainage Channels and Surface Water Control

Adequate drainage design requires considering surface water management alongside the subsurface system. Even with perfect aggregate and pipe work behind the wall, if surface runoff from roofs, driveways, paved areas, and hillsides is allowed to flow toward or over the wall top, it will saturate the soil and overwhelm the drainage system.

Grade the ground above the wall so that finished surface levels fall away from the wall by at least 2% where practical. This directs water toward yard drains, grated channels, or turf swales. Proper grading prevents surface water from pooling behind retaining walls.

Typical surface drainage channels around retaining walls include:

• Shallow spoon drains running parallel to the top of the wall.
• Surface grated drains at the toe of driveways that slope toward pits.
• Diversion drains that catch hillside runoff before it reaches the wall.

Never discharge concentrated water, such as from roof downpipes, directly onto backfill behind the wall. Instead, pipe it to the stormwater system or a dedicated drain away from the wall structure. Drainage systems should be designed to handle site-specific water conditions.

For complex sites with multiple walls, steep slopes, or known flooding history, have your surface drainage and landscape design checked by a civil engineer or drainage designer. The cost is minor compared to the consequences of getting it wrong.

Step-by-Step: How to Install Retaining Wall Drainage on a Simple Site

This section describes a generic approach for a straight, low wall (under about 1 m) on a typical residential block. Walls above this height, on steep sites, or carrying loads from driveways or buildings must follow engineered designs. If you have limited access or a complex layout, consult a professional before proceeding.

The step order for a simple site:

• Excavate a level trench wider than the blocks to allow room for the drainage aggregate zone behind the wall. This will involve significant excavation even on small walls.
• Compact base materials (crusher dust or crushed rock) in thin layers, each properly compacted to create a firm, stable footing.
• Set the first course of blocks level, ensuring correct alignment.
• Lay filter fabric against the cut face of the retained soil.
• Install the 100 mm perforated pipe with continuous fall (minimum 1:100) and connect it to an appropriate outlet or discharge point.
• Place drainage aggregate to the wall height, keeping the zone at least 300 mm wide. Use clean aggregate only.
• Fold the fabric over the top of the aggregate to separate it from the soil above.
• Backfill the remaining space with suitable soil away from the wall. Avoid compacting directly on pipes with heavy machinery.

When building masonry or concrete walls, install weep holes spaced according to local standards. Weep holes should be spaced every 3 to 7 feet horizontally and must open into the drainage aggregate zone, not directly into soil. Weep holes provide outlets for trapped water in solid walls, acting as backup relief if the primary drainage is overloaded.

Protect pipe outlets with a grate or cage to prevent blockage. Always confirm local building codes and council requirements before starting. On more valuable or complicated sites, have a professional inspect the excavation and drainage layout before backfilling.

Common Retaining Wall Drainage Problems and Warning Signs

Drainage systems rarely fail overnight. They usually clog or break down gradually, with visible early warning signs that many homeowners overlook until the damage is serious. A well-maintained system can last decades, but neglect accelerates failure.

Common drainage problems include:

• Blocked or collapsed ag drains due to root intrusion or soil ingress.
• Missing or undersized drainage aggregate zones.
• Filter fabric omitted or incorrectly placed during construction.
• Outlets buried, damaged, or covered by later landscaping.
• Surface levels changed by subsequent works so runoff now flows toward the wall instead of away.

Clear warning signs to watch for: pooling water at the base shows inadequate drainage. Damp or stained wall surfaces, moss or algae growth, and visible water seeping through the wall indicates trapped moisture. Weep holes not discharging after rain signal potential blockages. Cracks and bulges indicate hydrostatic pressure buildup. If the wall begins to lean forward, that's a serious structural concern.

Soil erosion around the wall suggests drainage failure. Soft ground, erosion gullies, or sinkholes appearing near the wall can indicate that water is tunnelling through the backfill instead of using the drainage system. Timber walls are especially vulnerable to hidden rot when drainage fails.

If you notice new structural movement, larger cracks, sudden lean, or consistent saturation near buildings, stop DIY attempts and seek urgent engineering or surveyor advice. The cost of early intervention is always less than a full rebuild.

Maintenance: Keeping Your Retaining Wall Drainage Working

Even a well-designed drainage system needs periodic checks. Regular maintenance is essential for effective drainage performance. After major storms or during the wet season, take a few minutes to inspect your wall and its drainage.

A simple yearly routine:

• Inspect all visible drainage outlets and weep holes. Ensure they are not buried or blocked with mulch, leaves, or roots.
• Flush accessible outlets gently with a hose to confirm water flows freely. If water doesn't come through, there may be a drainage problem developing.
• Check the wall line for new cracks, joint openings, staining, or bulges after heavy rain events.
• Document changes with dated photos to track progression over time, useful for insurance or professional review.

Trim or remove deep-rooted trees and shrubs too close to the wall that could invade drainage materials or wrap around pipes. Replace them with shallow-rooted or groundcover species. Even freeze-thaw cycles can damage retaining walls by increasing internal pressure in saturated masonry, so keeping moisture away year-round matters.

If flushing an outlet causes muddy water or fine soil to discharge for a long period, it may indicate the filter fabric or drainage aggregate zone has failed. In that case, professional assessment is needed before attempting repairs.

When to Call a Surveyor or Structural Engineer

Any retaining wall that supports a building, driveway, pool, or sits close to a boundary is a structural element. Its drainage design should not be guessed or copied from generic diagrams. Hydrostatic pressure is the leading cause of retaining wall failure, and poor drainage is behind the vast majority of collapses.

Typical triggers for professional involvement include:

• Wall height over 1–1.5 m.
• Stepped or terraced walls on steep slopes.
• Reactive clay soils known in your locality.
• Evidence of wall movement or a history of flooding.
• Walls on or near property boundaries.

Surveyors can confirm levels, fall directions, and property boundaries. Structural or geotechnical engineers design drainage systems tailored to the site, including pipe sizing, drainage aggregate zone depth, and base details. Engineered designs often reference standards such as AS 4678 and local stormwater codes, which specify where drainage water can be discharged safely and legally.

Involving professionals early often costs less than rebuilding a failed wall, and may be required by councils or insurers for major retaining structures. If you see any of the warning signs described above, don't wait for the next wet season to act.

Frequently Asked Questions

Does every retaining wall need a drainage system behind it?

Almost all retaining walls higher than a few courses need at least a basic drainage system. Any wall retaining soil that can become saturated, particularly on clay soils, should include drainage aggregate and in most cases a perforated pipe. A well-designed drainage system is critical for retaining wall durability. Very low garden edging on free-draining sandy soil may cope without a full system, but it's the exception rather than the rule.

Can I fix a drainage problem in an existing retaining wall without rebuilding it?

Limited retrofits are sometimes possible. You might clear and extend weep holes, install new surface drains to divert water, or add a French drain in front of the wall. However, if the wall is already showing movement or the backfill is consistently saturated, the back of the wall usually needs to be excavated and rebuilt with correct drainage to prevent failure and avoid ongoing future repairs.

Where should the retaining wall drainage pipe discharge?

The perforated pipe should connect to an approved stormwater system, street kerb outlet, soakage pit (where allowed), or designated dispersion area on the same property. It must never discharge onto neighbouring land or into a sewer connection. Check with your local council for specific requirements in your area.

What size drainage aggregate should I use behind my wall?

Use 10–20 mm clean, angular crushed rock or similar free draining material. Local suppliers often label it as drainage aggregate or blue metal. Avoid finer materials, mixed soil and rock, or crusher dust in the drainage zone. The aggregate must remain clean so water can move through it without restriction.

Do small garden edging walls need the same drainage as large structural walls?

Low, non-structural garden edging (only one or two courses high) on well-drained sandy or dry soil may cope without a full drainage system. But any wall approaching 600–1,000 mm, or built on heavy clay, should include a designed drainage system with aggregate, pipe, filter fabric, and proper surface drainage, exactly as described for larger walls.
