Galvanised H Post for Retaining Walls
JD-ST-001 / each
From $22.44
incl. GST
Steel Posts / JD-ST-072

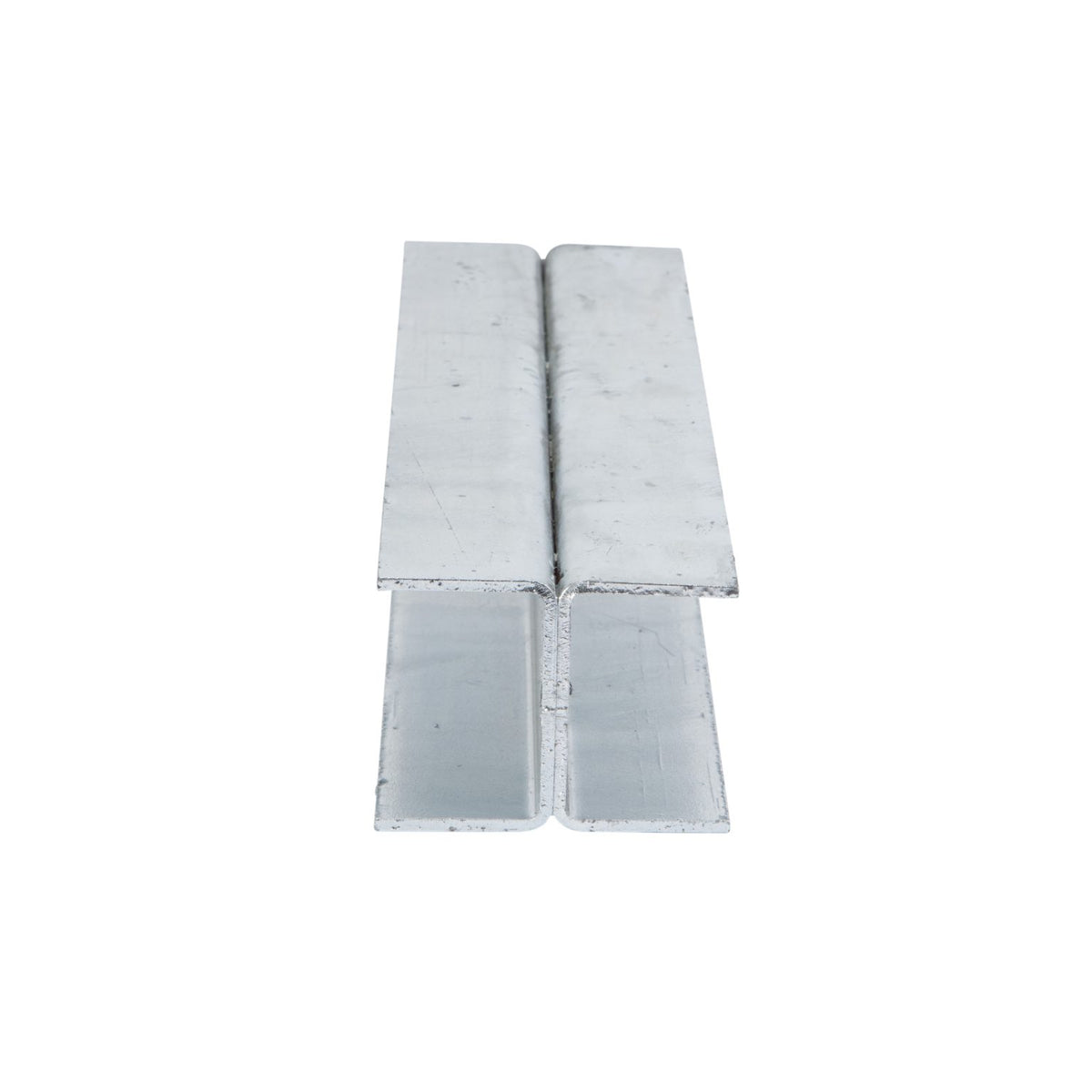

65 Series Galvanised Post (for Mini Sleepers)
From $12.76
incl. GST / each

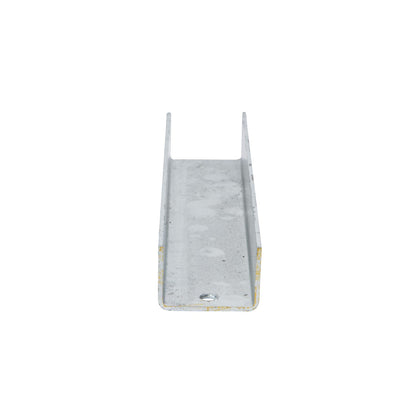

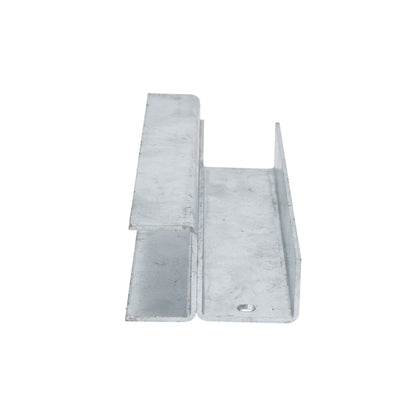

Galvanised steel posts for Mini concrete sleepers and EcoSleeper FRP sleepers, hot-dip galvanised for long life in the ground. Choose H posts to join bays, C posts for the ends, and 45 or 90 degree corner posts to turn corners. Lengths run from 300mm to 1.8m in 300mm steps. They suit 65mm Mini sleepers and 50mm FRP sleepers.
Under 50 posts: usually delivered in 1–2 business days. 50 or more: we confirm your delivery date when you order.
Freight is priced to your delivery suburb for most metro areas, or will be confirmed with you before payment.
Trade customer? Add to your quote for trade pricing, or call us.
Buy now with Add to cart, or use Add to quote to get trade pricing and freight confirmed before you pay. You can move items between your cart and quote at any time.
Questions about this product? Replies 7am to 6pm
Scan to text from your phone
Scan with your phone camera to text us about this product
01 / Product overview
Choosing the type: one H post between every pair of sleepers, a C post at each end, and a corner post wherever the wall turns.
Choosing the length: post length = wall height + footing depth. Take the footing depth from your wall design or the supplier span table.
Spacing: set posts at 1.5m centres for Mini sleepers.
Also order: Mini concrete sleepers or EcoSleeper FRP sleepers, sleeper wedges (65mm and 100mm post pack) and concrete for the piers. Post caps are available for 100 Series posts only.
Check your wall design
In Queensland, walls over 1m high, or walls supporting a load such as a driveway or building, generally need an engineer's design and council approval. Confirm sleeper and post sizes against your design before ordering.
02 / Detailed specifications
Know exactly what you’re ordering.
- Product code
- JD-ST-072
- Application
- Posts for Mini (65mm) concrete sleepers and EcoSleeper walls above 400mm
- Material
- 65 series universal column / channel, hot-dip galvanised
- Finish
- Hot-dip galvanised
- Strength and reinforcement
- Fits 65mm sleepers and 50mm FRP sleepers
- Compliance
- Galvanised to AS/NZS 4680; STA Consulting 65mm sleeper design tables
- Sales unit
- each
- Weight
- 1.5 kg
- Delivery class
- Long and heavy vehicle freight
Compare post sections
- The number is the section's depth in millimetres. A 150UC is about 150mm deep.
- The weight (kg/m) shows how heavy the steel is. At the same depth, heavier means thicker steel and a stronger post.
- UC (universal column) is an H shape. It goes mid-run as a joiner, holding a sleeper on each side.
- PFC (parallel flange channel) is a C shape. It goes at the end of a run, where the sleepers stop.
- UB (universal beam) is an I shape, deeper than it is wide, so it is very stiff for its weight. It is used in engineered walls.
- Every post is hot-dip galvanised.
| Section | Shape and job | Weight (kg/m) | Fits sleepers | Typical use |
|---|---|---|---|---|
| 65 SeriesThis product | H, C and corner posts | – | 65mm mini sleepers, 50mm composite | Low garden walls and edging with mini sleepers |
| 100 PFC | C post: end of a run | 8.3 | 75mm and 80mm | Ends of 100 series walls |
| 100 UC | H post: joiner mid-run (also sold with welded reo) | 14.8 | 75mm and 80mm | The standard post for most home retaining walls |
| 100 Corner | Two 100 PFCs welded at 90° or 45° | 2 × 8.3 | 75mm and 80mm | Turning a corner in a 100 series wall |
| 150 PFC | C post: end of a run | 17.7 | 100mm | Ends of 150 series walls |
| 150 UC 23.4 | H post: joiner mid-run | 23.4 | 100mm | Higher home walls, longer spans, or walls with a load behind them (driveway, fence, slope) |
| 150 UC 37.2 | H post: heavy joiner (Civil Series reo) | 37.2 | 100mm | Engineered walls that need more strength in the 150 size |
| 180 UB | I post: joiner (Civil Series reo) | 18.2 | 100mm | Engineered walls |
| 200 UB | I post: joiner mid-run | 18.2 | 100mm | High engineered walls: a deep, stiff post that stays light to handle |
| 200 PFC | C post: end of a run | 22.9 | 100mm | Ends of 200 series engineered walls |
| 200 UC | H post: heavy joiner | 46.2 | 100mm | The heaviest post, for engineered civil and commercial walls |
A general guide only. Post size, spacing and footing depth depend on wall height, soil and any load behind the wall. In Queensland, walls over 1m high, or walls supporting a driveway, building or fence, generally need an engineer's design and council approval. Order the section your design specifies.
03 / Shipping
Delivered by truck.
Freight shown on your quote.
Sleepers and posts are too long and heavy for a parcel service. They are delivered by truck, and freight depends on your suburb and the weight of your order.
Lead time
Under 50 posts: usually delivered in 1–2 business days. 50 or more: we confirm your delivery date when you order. Express delivery in 2 business days may be available on request. We confirm the date with you before you pay.
Delivery area
We deliver this product to Brisbane, Ipswich, Logan, Redlands, Gold Coast, Sunshine Coast, Toowoomba and Gympie. Outside these areas, freight is confirmed with you before payment.
Vehicle access
Allow a safe approach, turning space and a clear, level unloading point. Tell us about narrow gates, steep driveways or overhead obstructions.
Unloading & handling
Confirm who will unload and whether equipment is needed. A forklift, crane or tail-lift is not automatically included.
Freight & timing
Freight is separate from the product price. We confirm the freight charge and delivery window on your quote, before you pay.
04 / Product FAQs
Before you order.
What are 65 series posts for mini sleepers?
65 series posts are hot-dip galvanised steel posts for Mini concrete sleepers and EcoSleeper FRP sleepers. Choose H posts to join bays, C posts for the ends, and 45 or 90 degree corner posts to turn corners. They suit 65mm Mini sleepers and 50mm FRP sleepers.
What spacing do 65 series posts need?
Set 65 series posts at 1.5m centres for Mini sleepers.
What length 65 series post do I need?
Post length is the wall height plus the footing depth. Take the footing depth from your wall design or the supplier span table. Lengths run from 300mm to 1.8m in 300mm steps.
Which type of 65 series post do I need?
Use one H post between every pair of sleepers, a C post at each end, and a corner post wherever the wall turns. Post caps are available for 100 Series posts only.
