Steel Posts / JD-ST-096

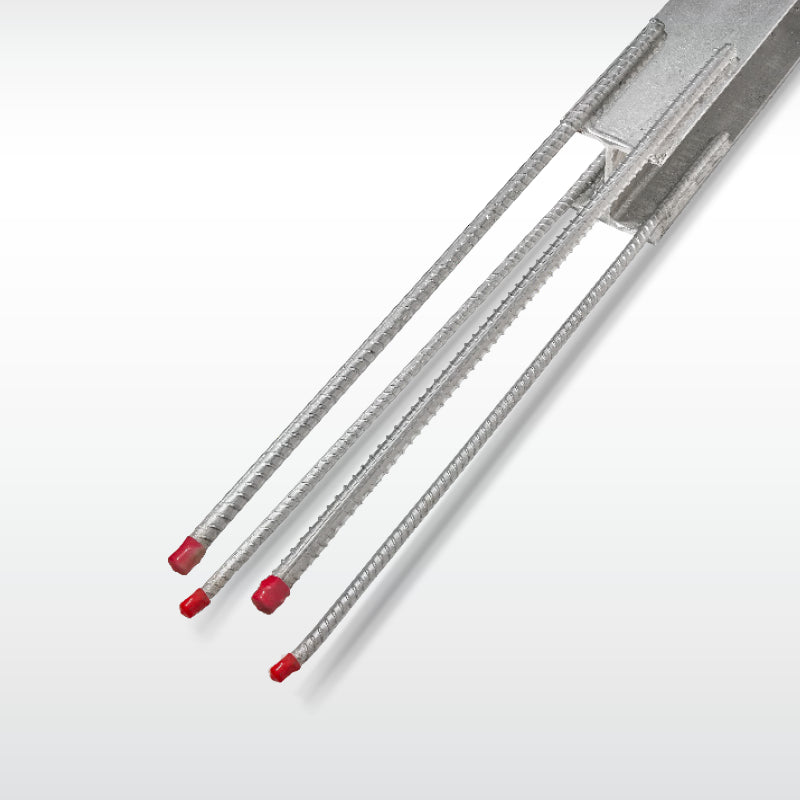

100UC Galvanised H Post with Reo
From $59.32
incl. GST / each
A 100UC steel H post with reinforcing bar welded to the base, so the post ties into its concrete pier for a stronger footing. Hot-dip galvanised for long life in the ground. It is sold by the wall height it is designed for, from 400mm to 2.0m, and supplied at the length that height needs. Takes 75mm and 80mm sleepers on both sides.
Under 50 posts: usually delivered in 1–5 business days. 50 or more: we confirm your delivery date when you order.
Freight is priced to your delivery suburb for most metro areas, or will be confirmed with you before payment.
Trade customer? Add to your quote for trade pricing, or call us.
Buy now with Add to cart, or use Add to quote to get trade pricing and freight confirmed before you pay. You can move items between your cart and quote at any time.
Questions about this product? Replies 7am to 6pm
Scan to text from your phone
Scan with your phone camera to text us about this product
01 / Product overview
Choosing a size: pick the wall height you are building. There's no need to work out the post length yourself.
Why reo: the welded bar locks the post into the pier, which helps on softer ground and higher walls. It follows the STA Consulting column and welded bar design.
Also order: 100PFC C posts for the ends, post caps, sleeper wedges and concrete for the piers.
In Queensland, walls over 1m high, or walls supporting a driveway, fence or building, generally need an engineered design and council approval.
Check your wall design
In Queensland, walls over 1m high, or walls supporting a load such as a driveway or building, generally need an engineer's design and council approval. Confirm sleeper and post sizes against your design before ordering.
02 / Detailed specifications
Know exactly what you’re ordering.
- Product code
- JD-ST-096
- Application
- Joiner post with welded reinforcement for stronger footings; sized by wall height
- Material
- 100UC 14.8kg/m universal column with welded reinforcing bar, hot-dip galvanised
- Finish
- Hot-dip galvanised
- Strength and reinforcement
- Fits 75mm and 80mm sleepers; walls 400mm to 2.0m
- Compliance
- Steel to AS/NZS 3679.1; galvanised to AS/NZS 4680; STA Consulting column + welded reinforcing bar wall design
- Sales unit
- each
- Weight
- 12.36 kg
- Delivery class
- Long and heavy vehicle freight
Compare post sections
- The number is the section's depth in millimetres. A 150UC is about 150mm deep.
- The weight (kg/m) shows how heavy the steel is. At the same depth, heavier means thicker steel and a stronger post.
- UC (universal column) is an H shape. It goes mid-run as a joiner, holding a sleeper on each side.
- PFC (parallel flange channel) is a C shape. It goes at the end of a run, where the sleepers stop.
- UB (universal beam) is an I shape, deeper than it is wide, so it is very stiff for its weight. It is used in engineered walls.
- Every post is hot-dip galvanised.
| Section | Shape and job | Weight (kg/m) | Fits sleepers | Typical use |
|---|---|---|---|---|
| 65 Series | H, C and corner posts | – | 65mm mini sleepers, 50mm composite | Low garden walls and edging with mini sleepers |
| 100 PFC | C post: end of a run | 8.3 | 75mm and 80mm | Ends of 100 series walls |
| 100 UCThis product | H post: joiner mid-run (also sold with welded reo) | 14.8 | 75mm and 80mm | The standard post for most home retaining walls |
| 100 Corner | Two 100 PFCs welded at 90° or 45° | 2 × 8.3 | 75mm and 80mm | Turning a corner in a 100 series wall |
| 150 PFC | C post: end of a run | 17.7 | 100mm | Ends of 150 series walls |
| 150 UC 23.4 | H post: joiner mid-run | 23.4 | 100mm | Higher home walls, longer spans, or walls with a load behind them (driveway, fence, slope) |
| 150 UC 37.2 | H post: heavy joiner (Civil Series reo) | 37.2 | 100mm | Engineered walls that need more strength in the 150 size |
| 180 UB | I post: joiner (Civil Series reo) | 18.2 | 100mm | Engineered walls |
| 200 UB | I post: joiner mid-run | 18.2 | 100mm | High engineered walls: a deep, stiff post that stays light to handle |
| 200 PFC | C post: end of a run | 22.9 | 100mm | Ends of 200 series engineered walls |
| 200 UC | H post: heavy joiner | 46.2 | 100mm | The heaviest post, for engineered civil and commercial walls |
A general guide only. Post size, spacing and footing depth depend on wall height, soil and any load behind the wall. In Queensland, walls over 1m high, or walls supporting a driveway, building or fence, generally need an engineer's design and council approval. Order the section your design specifies.
03 / Shipping
Delivered by truck.
Freight shown on your quote.
Sleepers and posts are too long and heavy for a parcel service. They are delivered by truck, and freight depends on your suburb and the weight of your order.
Lead time
Under 50 posts: usually delivered in 1–5 business days. 50 or more: we confirm your delivery date when you order. Express delivery in 2–3 business days may be available on request. We confirm the date with you before you pay.
Delivery area
We deliver this product to Brisbane, Ipswich, Logan, Redlands, Gold Coast, Sunshine Coast, Toowoomba and Gympie. Outside these areas, freight is confirmed with you before payment.
Vehicle access
Allow a safe approach, turning space and a clear, level unloading point. Tell us about narrow gates, steep driveways or overhead obstructions.
Unloading & handling
Confirm who will unload and whether equipment is needed. A forklift, crane or tail-lift is not automatically included.
Freight & timing
Freight is separate from the product price. We confirm the freight charge and delivery window on your quote, before you pay.
04 / Product FAQs
Before you order.
What is a 100UC reo post for a retaining wall?
A 100UC reo post is a galvanised 100UC steel H post with reinforcing bar welded to the base. The reo ties the post into its concrete pier for a stronger footing. It takes 75mm and 80mm sleepers on both sides.
How do I choose the size of a 100UC reo post?
Pick the wall height you are building, from 400mm to 2.0m. The post is supplied at the length that height needs, including the embedded section. For walls over 1m, or where the wall is engineered, confirm with your engineer.
Does a 100UC reo post replace a deeper pier?
A reo post reduces the pier depth needed in many cases but does not remove the need for a properly sized pier. Follow the design tables for your soil type.
Do I need council approval for a reo post retaining wall?
In Queensland, retaining walls over 1m in retained height generally need building approval and an engineered design. Lower walls can still need approval when they are close to a boundary or a building, support a driveway or pool, or carry a fence. Check with your council before you order.
