Steel Posts / JD-ST-105

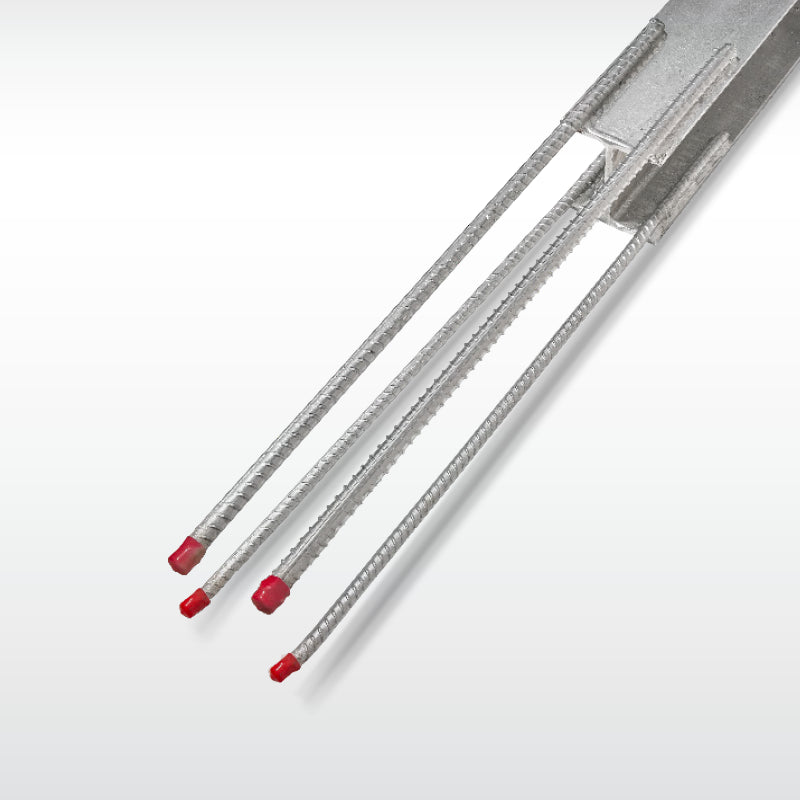

Civil Series Heavy Duty Reo Post
From $312.10
incl. GST / each
Heavy-section steel posts with welded reinforcement for engineered retaining walls from 2.0m to 3.0m high. Hot-dip galvanised for long life in the ground. Choose the section (150UC, 180UB or 200UC) and the wall height from your engineer's design; the post is supplied at the length that height needs. Takes 100mm thick sleepers.
Under 50 posts: usually delivered in 1–2 business days. 50 or more: we confirm your delivery date when you order.
Freight is priced to your delivery suburb for most metro areas, or will be confirmed with you before payment.
Trade customer? Add to your quote for trade pricing, or call us.
Buy now with Add to cart, or use Add to quote to get trade pricing and freight confirmed before you pay. You can move items between your cart and quote at any time.
Questions about this product? Replies 7am to 6pm
Scan to text from your phone
Scan with your phone camera to text us about this product
01 / Product overview
Engineered walls only: your engineer's design sets the section, spacing and footing. Order the exact section it specifies.
Also order: 100mm concrete sleepers, matching C posts for the ends, sleeper wedges (150mm post pack) and concrete for the piers.
Delivery: heavy posts arrive by truck and need machine unloading.
Engineered walls
Walls using this post need an engineered design and building approval. Order the section and wall height your engineer specifies.
02 / Detailed specifications
Know exactly what you’re ordering.
- Product code
- JD-ST-105
- Application
- Engineered retaining walls from 2.0m to 3.0m
- Material
- 150UC, 180UB or 200UC with welded reinforcement, hot-dip galvanised
- Finish
- Hot-dip galvanised
- Strength and reinforcement
- Fits 100mm sleepers; sized by wall height
- Compliance
- Steel to AS/NZS 3679.1; galvanised to AS/NZS 4680; engineered design required
- Sales unit
- each
- Weight
- 74.0 kg
- Delivery class
- Long and heavy vehicle freight
Compare post sections
- The number is the section's depth in millimetres. A 150UC is about 150mm deep.
- The weight (kg/m) shows how heavy the steel is. At the same depth, heavier means thicker steel and a stronger post.
- UC (universal column) is an H shape. It goes mid-run as a joiner, holding a sleeper on each side.
- PFC (parallel flange channel) is a C shape. It goes at the end of a run, where the sleepers stop.
- UB (universal beam) is an I shape, deeper than it is wide, so it is very stiff for its weight. It is used in engineered walls.
- Every post is hot-dip galvanised.
| Section | Shape and job | Weight (kg/m) | Fits sleepers | Typical use |
|---|---|---|---|---|
| 65 Series | H, C and corner posts | – | 65mm mini sleepers, 50mm composite | Low garden walls and edging with mini sleepers |
| 100 PFC | C post: end of a run | 8.3 | 75mm and 80mm | Ends of 100 series walls |
| 100 UC | H post: joiner mid-run (also sold with welded reo) | 14.8 | 75mm and 80mm | The standard post for most home retaining walls |
| 100 Corner | Two 100 PFCs welded at 90° or 45° | 2 × 8.3 | 75mm and 80mm | Turning a corner in a 100 series wall |
| 150 PFC | C post: end of a run | 17.7 | 100mm | Ends of 150 series walls |
| 150 UC 23.4This product | H post: joiner mid-run | 23.4 | 100mm | Higher home walls, longer spans, or walls with a load behind them (driveway, fence, slope) |
| 150 UC 37.2This product | H post: heavy joiner (Civil Series reo) | 37.2 | 100mm | Engineered walls that need more strength in the 150 size |
| 180 UBThis product | I post: joiner (Civil Series reo) | 18.2 | 100mm | Engineered walls |
| 200 UB | I post: joiner mid-run | 18.2 | 100mm | High engineered walls: a deep, stiff post that stays light to handle |
| 200 PFC | C post: end of a run | 22.9 | 100mm | Ends of 200 series engineered walls |
| 200 UCThis product | H post: heavy joiner | 46.2 | 100mm | The heaviest post, for engineered civil and commercial walls |
A general guide only. Post size, spacing and footing depth depend on wall height, soil and any load behind the wall. In Queensland, walls over 1m high, or walls supporting a driveway, building or fence, generally need an engineer's design and council approval. Order the section your design specifies.
03 / Shipping
Delivered by truck.
Freight shown on your quote.
Sleepers and posts are too long and heavy for a parcel service. They are delivered by truck, and freight depends on your suburb and the weight of your order.
Lead time
Under 50 posts: usually delivered in 1–2 business days. 50 or more: we confirm your delivery date when you order. Express delivery in 2 business days may be available on request. We confirm the date with you before you pay.
Delivery area
We deliver this product to Brisbane, Ipswich, Logan, Redlands, Gold Coast, Sunshine Coast, Toowoomba and Gympie. Outside these areas, freight is confirmed with you before payment.
Vehicle access
Allow a safe approach, turning space and a clear, level unloading point. Tell us about narrow gates, steep driveways or overhead obstructions.
Unloading & handling
Confirm who will unload and whether equipment is needed. A forklift, crane or tail-lift is not automatically included.
Freight & timing
Freight is separate from the product price. We confirm the freight charge and delivery window on your quote, before you pay.
04 / Product FAQs
Before you order.
What are heavy duty retaining wall posts?
Civil Series heavy duty retaining wall posts are heavy-section galvanised steel posts (150UC, 180UB or 200UC) with welded reinforcement, for engineered retaining walls from 2.0m to 3.0m high. They are sized by wall height and supplied at the length that height needs.
Do heavy duty retaining wall posts need an engineer?
Yes. Walls of this height need an engineered design and building approval. Order the section and height your engineer specifies.
Which sleepers go with heavy duty retaining wall posts?
These posts take 100mm thick sleepers. Use 100mm three-bar sleepers for walls in this range.
Can I get certification for heavy duty retaining wall posts?
Generic engineering is available from the manufacturer. Site-specific certification is arranged separately, so ask when you request your quote.
