Accessories / JD-AC-001
Retaining Wall Fence Bracket
A galvanised steel bracket that bolts to the top of a retaining wall post so a fence post can sit on top of the wall. Choose 3mm brackets for Colorbond fence posts or 6mm brackets for timber, in straight or offset styles; there is also a 3mm bracket for 65 Series posts. Each kit includes the bracket and two nuts and bolts. Rated for fences to 1.8m in N3 wind areas.
Usually delivered in 1–5 business days. We confirm the date with you before you pay.
Freight is priced to your delivery suburb for most metro areas, or will be confirmed with you before payment.
Trade customer? Add to your quote for trade pricing, or call us.
Buy now with Add to cart, or use Add to quote to get trade pricing and freight confirmed before you pay. You can move items between your cart and quote at any time.
Questions about this product? Replies 7am to 6pm
Text 0420 120 105
1300 211 390Scan to text from your phone
01 / Product overview

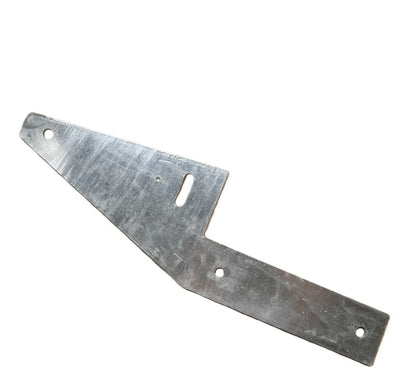

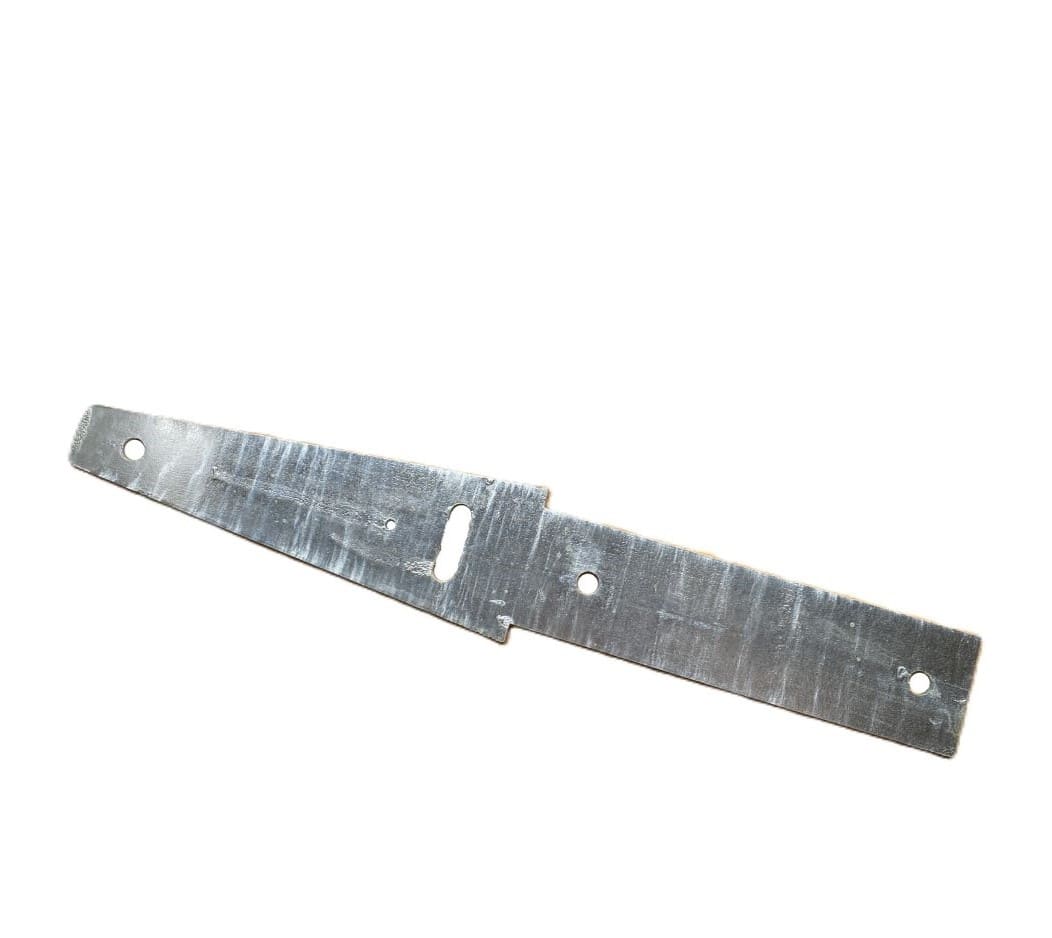

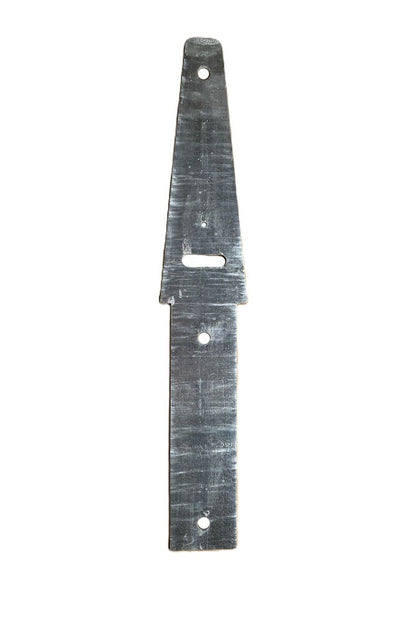

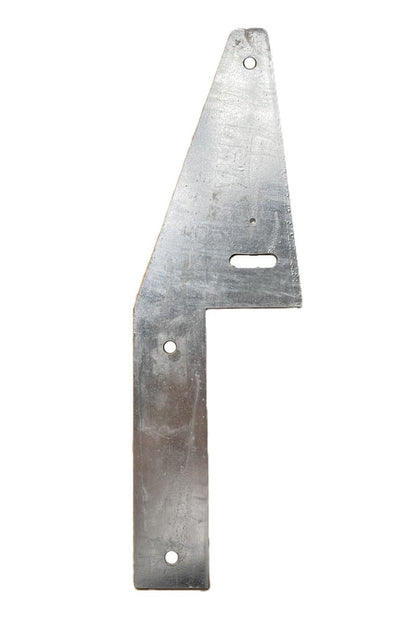

Straight or offset: straight brackets put the fence directly above the wall. Offset brackets set the fence back from the wall face, for example to clear capping.
How many: one bracket per fence post that lands on the wall.
Fitting: the bracket bolts through the top of the retaining wall post. Plan fence post positions to line up with your wall posts.
Check your wall design
In Queensland, walls over 1m high, or walls supporting a load such as a driveway or building, generally need an engineer's design and council approval. Confirm sleeper and post sizes against your design before ordering.
02 / Detailed specifications
Know exactly what you’re ordering.
- Product code
- JD-AC-001
- Application
- Fixing fence posts to the top of retaining wall posts
- Material
- Galvanised steel bracket, 3mm or 6mm, with 2 nuts and bolts
- Finish
- Galvanised
- Strength and reinforcement
- 3mm for Colorbond posts; 6mm for timber posts
- Compliance
- Fences to 1.8m, N3 wind rating
- Sales unit
- each
- Weight
- 1.0 kg
- Delivery class
- Parcel or small-item service
03 / Shipping
Small items.
Simple delivery.
For very small items we use Australia Post. For all other items that cannot be sent by Australia Post, we will send via a courier service.
Lead time
Usually delivered in 1–5 business days. Express delivery in 2–3 business days may be available on request. Orders placed after 2pm count from the next business day. We confirm the date with you before you pay.
Delivery area
We deliver this product to Brisbane, Ipswich, Logan, Redlands, Gold Coast, Sunshine Coast, Toowoomba and Gympie. Outside these areas, freight is confirmed with you before payment.
Vehicle access
Allow a safe approach, turning space and a clear, level unloading point. Tell us about narrow gates, steep driveways or overhead obstructions.
Unloading & handling
Confirm who will unload and whether equipment is needed. A forklift, crane or tail-lift is not automatically included.
Freight & timing
Freight is separate from the product price. We confirm the freight charge and delivery window on your quote, before you pay.
04 / Product FAQs
Before you order.
Which retaining wall fence bracket do I need?
3mm brackets suit Colorbond fence posts. 6mm brackets suit timber fence posts. Use a straight bracket where the fence sits directly above the wall post, and an offset bracket where the fence needs to sit back from the wall face, for example to clear capping. There is also a 3mm bracket for 65 Series posts.
Do retaining wall fence brackets come with bolts?
Yes. Each retaining wall fence bracket is supplied as a kit with two nuts and bolts.
Can I fit a fence on a retaining wall with a fence bracket?
Yes, up to 1.8m high where wind loads do not exceed N3. The fence posts bolt to the top of the retaining wall posts with these brackets, so order one bracket per fence post that lands on the wall.
How is a retaining wall fence bracket fixed?
The bracket bolts through the top of the retaining wall post, using the pre-drilled holes. Posts without holes can be drilled on site; touch up with cold gal spray. Plan fence post positions to line up with your wall posts.
