Civil / JD-CV-001

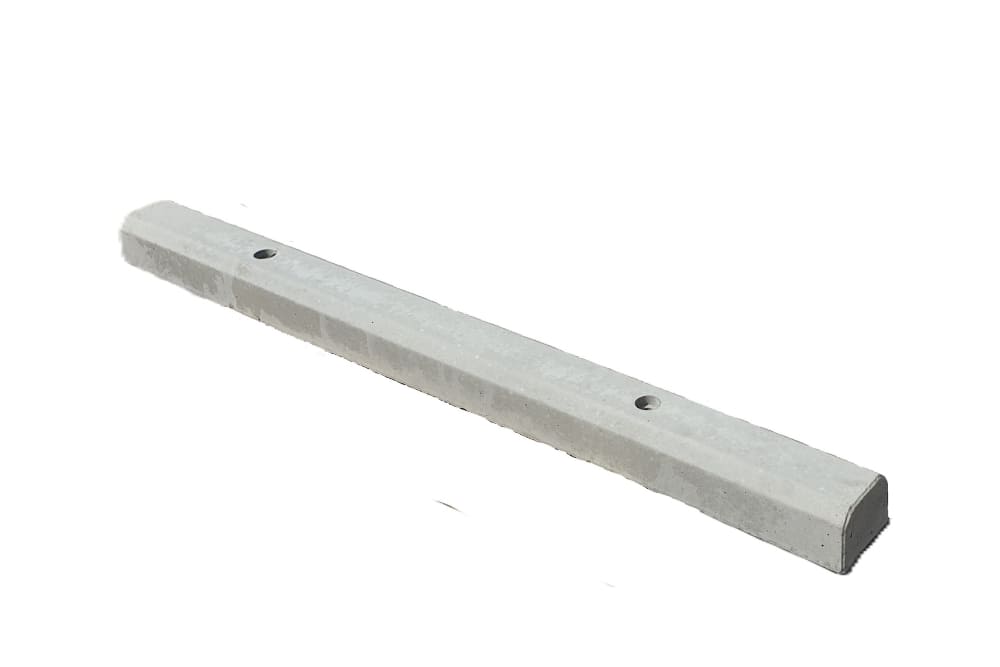

Concrete Wheel Stop 1650mm
A precast reinforced concrete wheel stop for car parks and driveways, 1650mm long, 150mm wide and 100mm high. Made from 40MPa concrete with two N12 reinforcing bars, in a natural grey finish, to the standard Australian car park size. Fixings are sold separately.
Under 50 units: usually delivered in 2–5 business days. 50 or more: we confirm your delivery date when you order.
Freight is priced to your delivery suburb for most metro areas, or will be confirmed with you before payment.
Trade customer? Add to your quote for trade pricing, or call us.
Buy now with Add to cart, or use Add to quote to get trade pricing and freight confirmed before you pay. You can move items between your cart and quote at any time.
Questions about this product? Replies 7am to 6pm
Text 0420 120 105
1300 211 390Scan to text from your phone
01 / Product overview

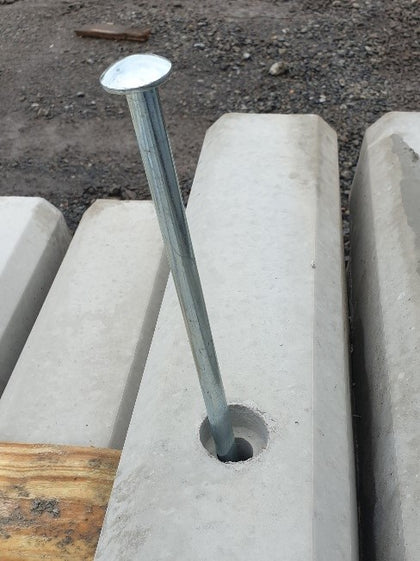

Fixings: each wheel stop needs two: galvanised pins for asphalt, or Dyna bolts for concrete. See Wheel Stop Fixing.

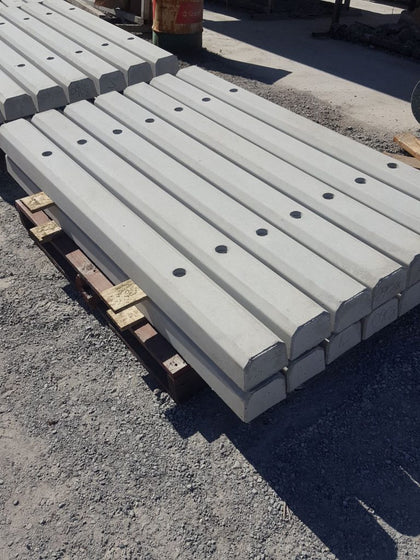

Bulk orders: wheel stops come 21 to a pallet; full pallets are the most efficient to deliver.
Delivery: palletised orders arrive by truck and need machine unloading.
Check your wall design
In Queensland, walls over 1m high, or walls supporting a load such as a driveway or building, generally need an engineer's design and council approval. Confirm sleeper and post sizes against your design before ordering.
02 / Detailed specifications
Know exactly what you’re ordering.
- Product code
- JD-CV-001
- Application
- Car park wheel stops
- Material
- Steel-reinforced precast concrete, 1650 x 150 x 100mm
- Finish
- Natural grey
- Strength and reinforcement
- 40MPa concrete, 2 x N12 reinforcing bars
- Compliance
- Standard Australian car park size; 21 per pallet
- Sales unit
- each
- Weight
- 54.0 kg
- Delivery class
- Long and heavy vehicle freight
03 / Shipping
Delivered by truck.
Freight shown on your quote.
Sleepers and posts are too long and heavy for a parcel service. They are delivered by truck, and freight depends on your suburb and the weight of your order.
Lead time
Under 50 units: usually delivered in 2–5 business days. 50 or more: we confirm your delivery date when you order. Express delivery in 2–3 business days may be available on request. Orders placed after 2pm count from the next business day. We confirm the date with you before you pay.
Delivery area
We deliver this product to Brisbane, Ipswich, Logan, Redlands, Gold Coast, Sunshine Coast, Toowoomba and Gympie. Outside these areas, freight is confirmed with you before payment.
Vehicle access
Allow a safe approach, turning space and a clear, level unloading point. Tell us about narrow gates, steep driveways or overhead obstructions.
Unloading & handling
Confirm who will unload and whether equipment is needed. A forklift, crane or tail-lift is not automatically included.
Freight & timing
Freight is separate from the product price. We confirm the freight charge and delivery window on your quote, before you pay.
04 / Product FAQs
Before you order.
What size are concrete wheel stops for car parks?
These concrete wheel stops are 1650mm long, 150mm wide and 100mm high, the standard Australian car park size. They are precast from 40MPa concrete with two N12 reinforcing bars, in a natural grey finish.
What fixings do concrete wheel stops need?
Each concrete wheel stop needs two fixings: 12mm x 300mm galvanised pins for asphalt, or 16mm Dyna bolts for concrete. Fixings are sold separately; see Wheel Stop Fixing.
How many concrete wheel stops come on a pallet?
21 concrete wheel stops come on a pallet. Full pallets are the most efficient to deliver, and freight is quoted by the pallet and suburb.
How are concrete wheel stops delivered?
Palletised concrete wheel stops arrive by truck and need machine unloading. Tell us about site access and whether a forklift is on site.
