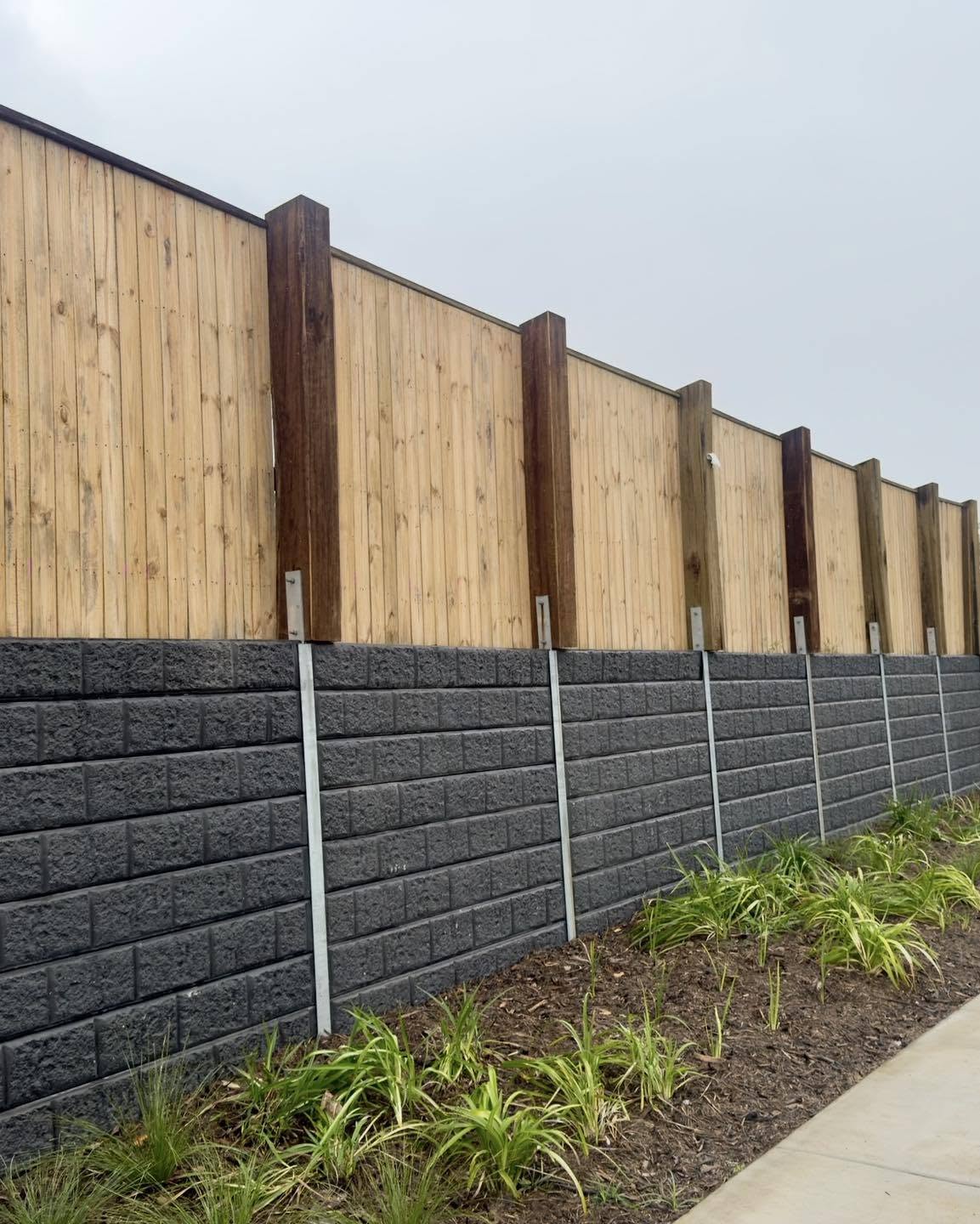

Fence on Retaining Wall: How to Safely Build a Fence on Concrete Sleeper Retaining Walls

Building a fence on a retaining wall is one of the most common projects on sloped suburban blocks across Australia. Get it right and you end up with a clean, continuous boundary line that handles both soil retention and privacy. Get it wrong and you risk structural failure, council orders, or a wall that leans under wind pressure within a few years. This guide walks you through the methods, the engineering, and the practical steps involved in setting a Colorbond fence on top of a concrete sleeper retaining wall.

Key Takeaways

• You can safely fix a Colorbond fence to a concrete sleeper retaining wall using the offset post method, the flange/bracket method, or the integrated post method for new builds.
• Wind load on a 1.8 m Colorbond fence above a 600–1,200 mm retaining wall is the primary structural concern - a 1.8 m fence on a 1 m wall creates a 2.8 m barrier from the lower side.
• In most Australian councils, a combined wall and fence over about 2.0–2.4 m from the lower side will likely trigger engineering and permits.
• For a new concrete retaining wall and fence, the integrated post method using extra-long galvanised steel posts set in a single footing is usually the strongest and cleanest solution.
• Installing a fence on a retaining wall adds structural stress to the wall, so proper mounting methods depend on the wall type and construction.

Understanding Retaining Walls and Fences as One System

A retaining wall holds back soil on a higher level, resisting lateral earth pressure. A fence provides privacy, security, and a boundary line. The moment you place a fence on top of a retaining wall structure, they stop being two independent things and become a single combined structure that must resist both soil pressure and wind forces together.

• Retaining walls are designed to hold back soil rather than support lateral wind loads from fences. Adding a solid fence on top changes the engineering completely.
• A 900 mm concrete retaining wall with a 1.8 m Colorbond fence on top becomes a 2.7 m high barrier when measured from the lower side - that is a significant amount of surface area exposed to wind.
• Installing a fence on a retaining wall requires specific engineering because fences act as sails in high winds, increasing stress on retaining walls and their footings.
• On typical Australian suburban blocks in 2024–2026 - small lots, stepped yards, boundary retaining walls supporting neighbours - this wall and fence combination is extremely common and frequently underestimated.

Planning the Retaining Wall and Fence Together

Planning a fence and wall together prevents future conflicts. Even if you build the retaining wall now and the fence later, your plan should account for retaining wall posts, footing locations, drainage zones, and fence post positions from day one.

• Retaining wall post locations and footing sizes will dictate where fence posts can go, especially near boundaries and corners where there may not be enough space for offset footings.
• Check finished levels from both sides. A fence that looks 1.8 m from the lower side may feel much shorter from an elevated deck or alfresco area above. Using a screen topper can enhance privacy for elevated properties where the standard fence height proves insufficient.
• Planning early avoids clashes like trying to core-drill fence posts through steel H beams or cutting through drainage pipes behind the wall.
• Planning should consider future fence height and post locations so that replacement in 15–20 years does not require demolishing the retaining wall.
• Involve an engineer or experienced builder at the sketch stage to size posts for combined soil and wind loads. This applies whether you are working with a concrete sleeper retaining wall, a timber retaining wall, or block walls.

Structural Basics: Wind Load, Footings and Post Design

Wind load and overturning are the main structural risks when you combine a retaining wall and fence into one system. A stand-alone 1.8 m Colorbond fence in your yard is one thing; the same fence sitting 1.0 m above ground on top of a concrete retaining wall is a completely different engineering problem.

• Wind load is the horizontal force that wind applies to a surface. A 1.8 m Colorbond fence is a solid sail with no gaps, so it catches the full force of wind compared with a low, perforated fence.
• Wind load increases lateral forces on retaining walls when a fence is added. A 1.0 m concrete sleeper retaining wall with a 1.8 m Colorbond fence in a high-wind region such as coastal South Australia will need deeper, heavier retaining wall posts and footings than a fence alone would require.
• A 1.8 m fence on a 1 m wall creates a 2.8 m barrier. That combined height generates a bending moment at the post base that demands steel posts sized at 100UC or 150UC, footings of Ø450 mm or larger, and embedment depths of 1,400 mm or more depending on soil type and wind region.
• Wind load should be considered when designing fences on retaining walls - structural engineering drawings may be needed for wind load assessment, particularly in exposed or coastal sites.

Methods for Installing a Fence on a Concrete Retaining Wall

There are three main ways to build a fence over or near a concrete retaining wall: offset posts, bracket or flange posts, and the integrated post method. The best method depends on whether the retaining wall already exists, what it is made from, and your target fence height.

• Offset Method - independent fence posts beside the wall, best for an existing retaining wall you cannot modify.
• Flange/Bracket Method - posts bolted directly to a solid concrete retaining wall or core-filled block walls.
• Integrated Post Method - extra-long steel posts that serve as both wall posts and fence posts, ideal for new construction.

Offset Method – Independent Fence Posts Beside the Wall

The offset method places Colorbond fence posts in their own holes behind or in front of the retaining wall, completely independent of the retaining wall structure. Offset posts are safest for existing retaining walls where you do not want to drill into or weaken the concrete.

• Mark the fence line, then locate existing retaining wall posts and drainage runs before digging any holes.
• Dig offset post holes at least 200–300 mm clear of the back of the wall where there is enough space, so footings do not clash with wall footings or agg pipe.
• Concrete fence posts to the required depth, plumb them, and allow footings to cure before fixing Colorbond rails and sheets.
• Check underground services and wall drainage before digging - fence posts can conflict with retaining wall drainage systems if positioned carelessly.
• This method suits situations where you have more space behind the wall and need a solution that keeps your options open without altering the existing structure.

Flange / Bracket Method – Bolting Posts to Concrete Walls

The flange or bracket method fixes fence posts directly to the top or face of a concrete retaining wall using welded base plates and chemset anchors. Use flanged Colorbond posts only where the top or face of the wall is solid concrete thick enough to develop anchor pull-out strength, such as a poured or core-filled wall. Concrete sleepers are too thin to anchor into, so on a sleeper wall use fence brackets bolted to the steel posts instead.

• This method is suitable for solid concrete retaining walls and core-filled block walls, but generally not recommended for timber retaining wall or hollow block construction.
• On a solid concrete wall, mark and drill holes into the top of the wall, install chemical anchors (typically M16 or M20), then bolt flanged posts tight before adding fence rails and infill sheets.
• Check edge distances and concrete thickness - a minimum of 100–150 mm of solid concrete under the flange is needed so anchors develop maximum strength without spalling.
• This method concentrates wind load and uplift into a narrow strip of concrete, so engineering is critical when combined height exceeds around 2.0 m from the lower ground. Post spacing is typically 2.4–3.0 m centres.

Integrated Post Method – New Wall and Fence Built Together

The integrated post method uses extra-long, heavy-duty galvanised steel posts set deep into concrete footings. The lower section supports concrete sleepers and the upper section becomes the fence posts. Integrated posts should be used for new retaining wall builds where you can design wall and fence together from the ground up.

• A typical layout uses 125UC or 150UC steel posts installed at 2.4 m centres, grouted into bored pier footings 1.6–2.4 m deep depending on wall height and local wind region, with concrete sleepers below and a 1.8 m Colorbond fence above.
• Welded spigots allow seamless transitions for Colorbond posts, creating a continuous, clean line from wall to fence without visible brackets or gaps.
• This method delivers maximum strength against both soil pressure and wind load because the entire system - footing, post, sleepers, fence - works as one structure.
• Corrosion protection matters: all steel H posts must be hot-dip galvanised, and cut ends must be sealed with cold-galvanising paint because integrated posts are critical structural members that must last decades - a genuinely low maintenance approach compared to wood or timber alternatives.

Step-by-Step: Setting a Colorbond Fence on Top of a Concrete Sleeper Retaining Wall

This section walks through a typical project where a new concrete sleeper retaining wall and Colorbond fence are built together using integrated posts - the most common approach for new builds on Australian boundary lines in 2024–2026.

1. Site assessment - survey the slope, measure the fall across the site, mark the fence and wall line with a string line, and confirm finished ground levels on both sides.
2. Choose wall and fence height - typical combinations are 600–1,200 mm high concrete sleeper retaining walls with a standard 1.8 m Colorbond fence above, giving a combined height of 2.4–3.0 m from the lower side.
3. Confirm council rules - compliance with local regulations is necessary before installation begins (see next section).
4. Layout and footings - set out post centres, auger footing holes to the engineered depth and diameter, plumb posts with a spirit level, fill with concrete, and allow a minimum of seven days to cure.
5. Install concrete sleepers - slide sleepers between posts from the high side, taking care not to damage waterproofing membranes or drainage fabric behind the wall.
6. Fix Colorbond fencing - bolt fence rails to the posts above sleeper height, then clip or screw infill sheets. Check plumb and line one final time.
7. Backfill and drainage - complete drainage and backfill behind the wall before loading the fence with any attachments.

Council Rules, Height Limits and Permits

Retaining walls and fences are regulated separately, but your local council will almost always treat a retaining wall and fence combination by total height from the lower side. Local building codes often regulate the combined height of a retaining wall and fence as a single structure.

• A fence on a retaining wall may require a building permit. Building permits are often required for fences over 2 m high, and a combined height over 2 metres triggers the need for town planning approval in many jurisdictions.
• Fence height is measured from natural ground level on the lower side. A 1.0 m retaining wall plus a 1.8 m fence counts as a 2.8 m structure for permit purposes - a significant gap above the typical exempt threshold.
• In South Australia, combined heights above 2.1 m from the lower ground require development approval. In Victoria, a side or rear boundary fence over 2.0 m typically needs a building permit. Brisbane requires building approval for retaining walls over 1.0 m when surcharge loads such as fencing are present.
• Engineers may need to certify the concrete retaining wall and fence posts for wind load and soil pressure, providing structural drawings before construction starts.
• Always check your own council website or speak to a private certifier. Rules differ between neighbours on different council boundaries, and front, side, and rear setbacks can each have different limits.

Drainage, Waterproofing and Protecting the Retaining Wall

Drainage is just as important as structural design for retaining walls. Drainage must be controlled behind retaining walls to prevent issues, and drainage systems are crucial for maintaining the structural integrity of retaining walls over their full lifespan.

• Standard drainage behind a concrete sleeper retaining wall includes 20 mm drainage gravel, geotextile membrane, agricultural pipe at the base, and weep holes or an outlet to stormwater.
• Digging or trenching for fence posts can cut through agg pipe or geotextile, leading to water pressure build-up and premature wall failure. Fence posts can conflict with retaining wall drainage systems if post hole locations are not coordinated with drainage runs.
• Direct surface water from downpipes, paved areas, and garden beds away from the wall and fence line. A 200–300 mm decorative gravel strip along the top of the wall encourages water to percolate down into the drainage zone instead of flowing over the face.
• If your site includes a pool or paved alfresco area above the wall, ensure runoff is captured in a channel drain before it reaches the retaining wall.

Maintenance, Replacement and Future-Proofing

A concrete sleeper retaining wall can last 40–60 years, but a Colorbond fence typically needs replacement after 15–25 years. Planning for that future replacement now can save a significant amount of cost and disruption later.

• Integrated post systems mean fence replacement must be done without damaging the retaining wall. Rails and sheets should be installed with bolt connections that are removable without cutting posts or sleepers.
• Where possible, design fence posts to be replaced or sleeved without disturbing wall footings or drainage - especially on boundary retaining walls shared with neighbours.
• Consider future access for machinery if a section of the wall ever needs repair, and avoid burying old post footings in the line of a potential new wall and fence layout.
• A well-planned wall and fence will look simple day-to-day because all the long-term complications were anticipated at the design stage.

Frequently Asked Questions

These FAQs cover common questions that do not fit neatly into the main sections above.

Can I attach fence posts directly to concrete sleeper H-posts?

• Bolting fence rails straight to sleeper steel H posts is sometimes done for low, light fences, but it is not ideal for a full-height Colorbond fence due to wind load.
• H-posts are usually sized for soil pressure only, not the extra leverage from a 1.8 m solid fence above, unless specifically engineered as integrated posts to prove they can handle combined forces.
• Modifying H-posts by drilling large holes can compromise corrosion protection and structural capacity. Only do this with engineering approval.
• Use either offset posts or purpose-designed integrated posts certified by an engineer rather than retrofitting standard sleeper uprights.

How close can I dig new fence post holes to an existing retaining wall?

• As a rule of thumb, keep new fence post holes at least 200–300 mm clear of the back of the wall where space allows.
• Digging too close can undermine the retaining wall footing or cut through drainage gravel and agg pipe.
• Expose and mark the line of wall posts and any visible drainage outlets before starting. Consult original engineering drawings if available.
• In tight spaces where there is not enough room for offset holes, fence brackets bolted to the steel wall posts may prove a safer solution than deep holes right beside the retaining wall.

What is the maximum height for a retaining wall and fence combination?

• Many Australian councils cap combined retaining wall and fence height at around 2.0–2.4 m from the lower ground level before a building permit or planning approval is required.
• A 900 mm retaining wall with a 1.8 m fence already gives a 2.7 m combined structure, which almost always needs engineering and approvals.
• Limits vary by state and local council. Side boundary, front boundary, and corner lots may each have different regulations.
• Check your local council requirements and engage an engineer early if your project is anywhere near the threshold.
